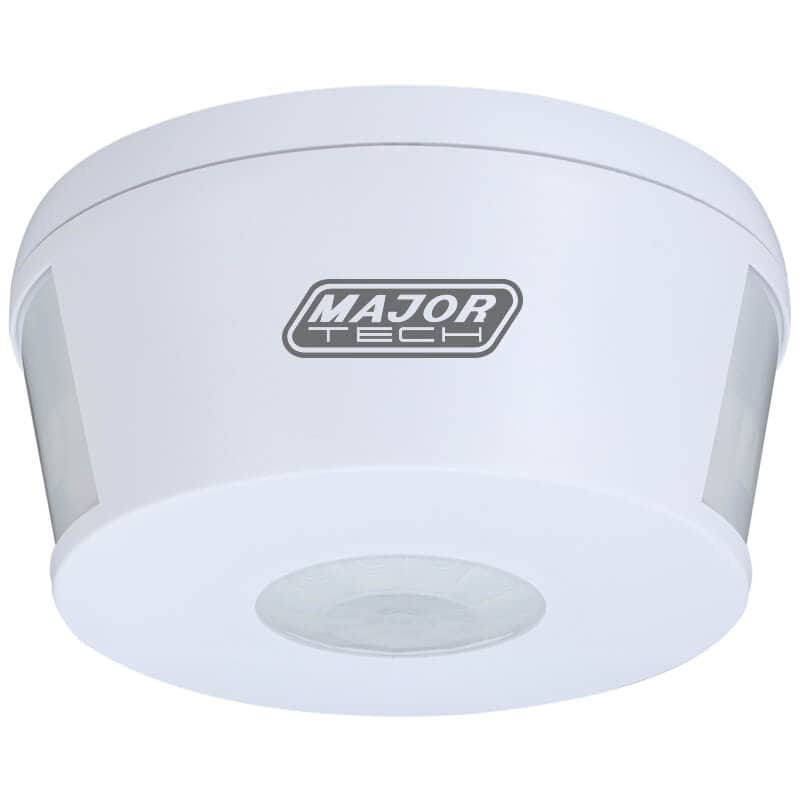

360° Infrared Motion Sensor

360° Infrared Motion Sensor

Our 360° Infrared Motion Sensor (PIR46) automatically turns lights on when it detects movement and body heat. It uses infrared energy from people as a control signal, activating the connected load when someone enters its detection field. As a result, it offers practical lighting control for homes, offices and hotels.

The sensor features 360° detection with a total detection range of 30 metres, extending 15 metres from the centre in all directions. It also includes a day/night sensor that identifies ambient light conditions. In addition, you can adjust the time delay and light sensitivity to suit your requirements.

The PIR46 operates at 220–240V with a frequency of 50/60Hz and consumes 0.5W of power. Its rated load is 2000W for incandescent lighting and 1000W for LED or CFL lighting. The recommended installation height is between 2.2 and 4 metres.

With adjustable time and lux settings, this infrared motion sensor provides practical lighting control for corridors, pathways, bathrooms and lobbies.

How does the 360° Infrared Motion Sensor work?

The sensor detects movement and body heat using infrared energy. When someone enters its detection field, it activates the connected load and turns the lights on.

What is the detection range of the PIR46 sensor?

The sensor has a 360° detection angle and a total detection range of 30 metres, extending 15 metres from the centre in all directions.

Can I adjust the sensor’s sensitivity and timing?

Yes. The sensor has adjustable time and lux settings, allowing you to adjust the time delay and ambient light threshold.

What is the rated load of the 360° Infrared Motion Sensor?

The rated load is 2000W for incandescent lighting and 1000W for LED or CFL lighting.

Where can I use this infrared motion sensor?

The sensor is suited to homes, offices and hotels. Common applications include corridors, pathways, bathrooms and lobbies.
