WoodUpp Fjell | TV Mount

Fjell | TV Mount

The Fjell TV Mount clips onto your Akupanel without drilling — holding screens just 5–10 mm from the wall with a magnetic lock that secures the bracket in place.

Available in Small or Large. Powder-coated black steel. VESA compatible. Designed to keep your TV close to the wall while remaining easy to reposition when needed.

Product details:

• Move it around whenever you want

• Works as one cohesive system

• Installs in minutes without extra tools

• No drilling into the wall

• Adapts as your life changes

• Move, add, or reconfigure anytime

Available variants:

• Small (up to 35 kg)

• Large (up to 60 kg)

Product dimensions:

Small:

• Length: 17 cm

• Width: 36 cm

• Depth: 0.15 cm

• Coverage: 0.06 m²

Large:

• Length: 44 cm

• Width: 76 cm

• Depth: 1 cm

• Coverage: 0.33 m²

What’s included:

Small:

• 1 × Wall plate (black powder-coated steel)

• 1 × VESA plate (black powder-coated steel)

• Screws: M4, M5, M6, M8 options

• Spacers (for TVs with rear cable protrusions)

• Printed placement template

Large:

• 1 × Wall plate (black powder-coated steel)

• 2 × VESA plates (black powder-coated steel)

• 9 × Zinc brackets

• 5 × Finger screws, black painted steel

• 2 × Finger screws, black painted steel

• 2 × Neodymium safety magnets

• 2 × Felt guides

• Screw set

• Mounting template

Materials & care

Materials:

Small:

• Wall plate: Powder-coated black steel

• VESA plate: Powder-coated black steel

Large:

• Wall plate and VESA plates: 2 mm black powder-coated steel

• Brackets: Zinc

• Safety magnets: Neodymium

Surface:

• Powder coating gives the metal a strong, long-lasting finish — and it uses materials far more efficiently than wet paint. Any extra powder is collected and reused, so almost nothing goes to waste. You may notice a small mark where the hook held the piece during coating. This is a natural result of the powder coating process.

Patented Brackets:

• Our brackets, which are included when you purchase our accessories and can be mounted onto our panels using these brackets, are patented in Denmark (Danish patent DK 181795 B1) and have “Patent Pending” status in other countries (international patent application WO 2024255982 A1).

Maintenance

Cleaning:

• Wipe with a clean, damp cloth.

• Avoid abrasive tools or cleaning agents.

Installation & safety

Small:

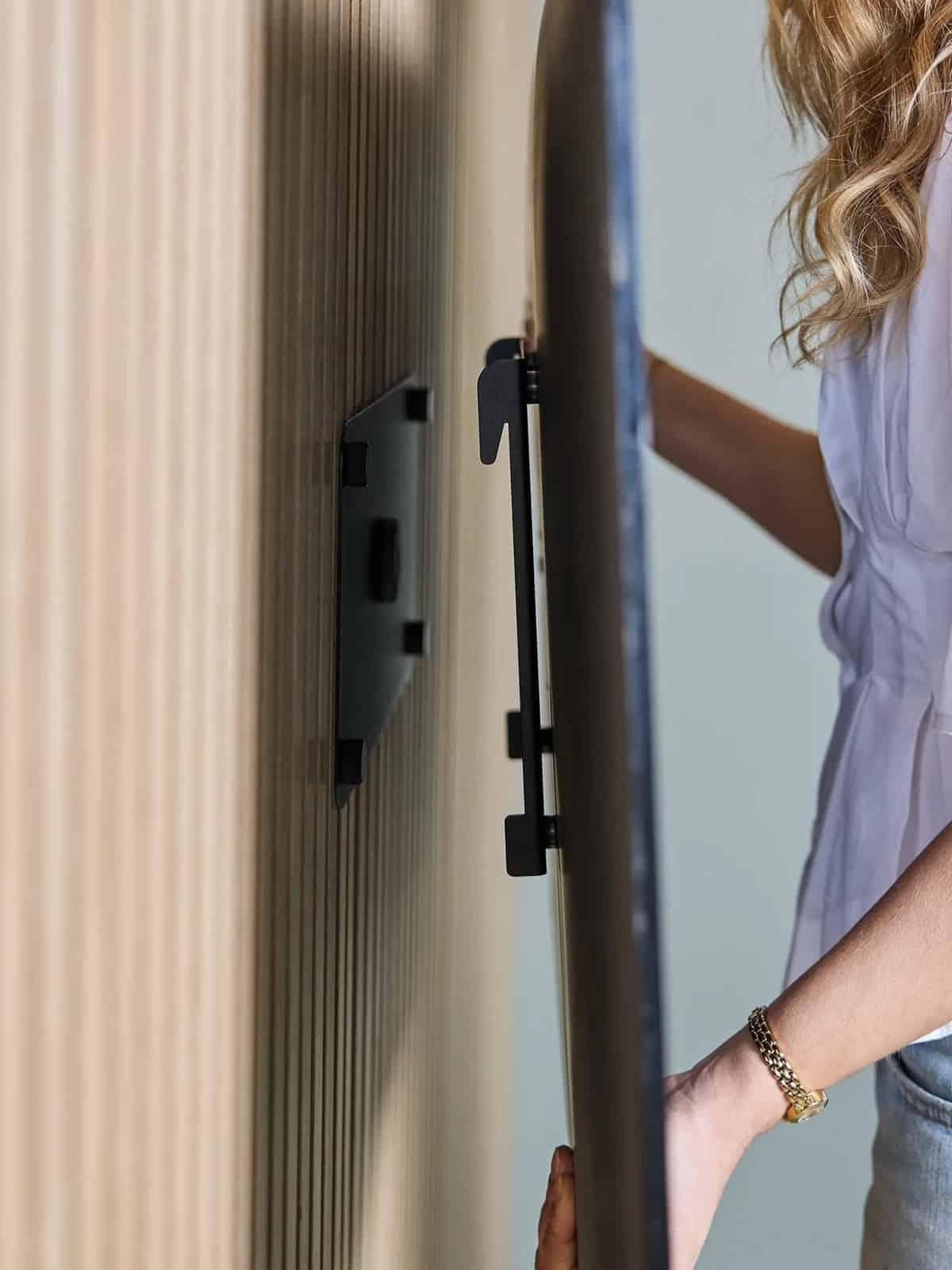

1. Position the wall plate on your Akupanel.

2. Attach the VESA plate to your TV using the supplied hardware.

3. Mount the TV onto the wall plate.

4. Ensure the magnetic locking mechanism is fully engaged.

5. Reposition at any time without drilling into the wall.

Large:

1. Slide nine zinc brackets into the grooves of your vertically mounted Akupanel at the marked positions.

2. Align the Fjell TV Mount with the brackets — the neodymium magnets will guide it into place.

3. Tighten the finger screws by hand until the mount sits firmly against the panel.

4. Attach your TV to the mount following the VESA pattern (max. 600 × 400).

5. Reposition the mount at any time by loosening the finger screws — no tools required.

Max weight capacity

Small:

• Maximum load: 35 kg

• Compatible with VESA patterns from 50 × 50 to 200 × 200

Large:

• Maximum load: 60 kg

• Compatible with VESA patterns from 200 × 200 to 600 × 400

• For use with vertically mounted Akupanels only

Designed exclusively for WoodUpp Akupanels, compatibility with third-party panels is not guaranteed.
